For the SIA DC09 IP signalling protocol to operate correctly, the equipment installed must be the following firmware versions or later:

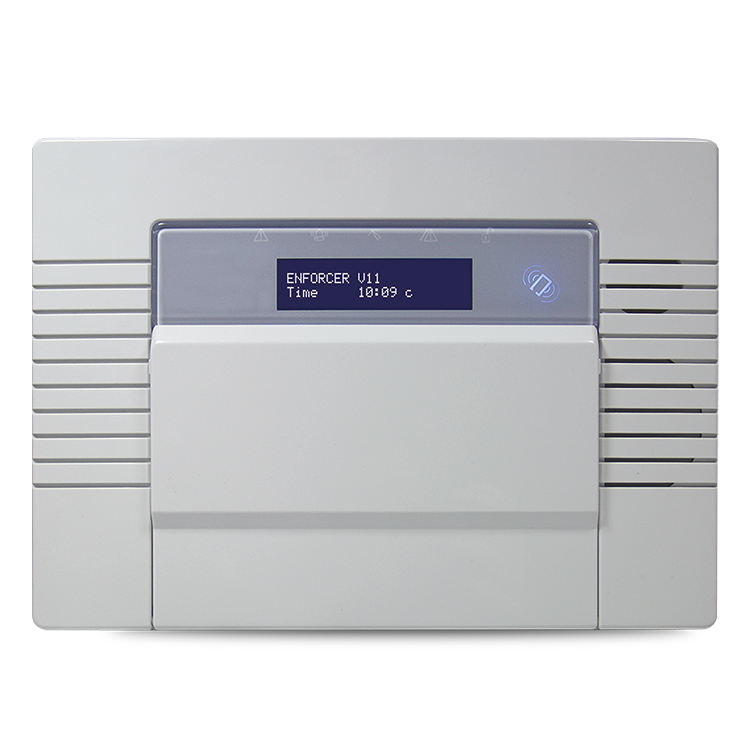

• Enforcer control panel (with onboard Wi-Fi) – V11.3
• Wi-Fi communication module* – V5.11
• WI-Fi communication module with external antenna* – V5.11
• GPRS communication module – V4.21
• LAN communication module – V1.50
*If the WIFI or WIFI/XA modules are used in the Enforcer V11, the Android Tablet is no longer able to communicate with the onboard Wi-Fi and therefore cannot be use
Specifications
Areas
4
Arming devices (max):
8 1x onboard keypad 3x wired keypads or internal/external proximity readers. 4x wireless keypads 4x tablets using HomeControlHUB application
Wireless zones (max)
64 32x zones on board (zones 1-32) 1x wireless expander (zones 35-66)
Sirens:
2 wireless sirens or 2 wired sirens (in SCB mode)
Wired zones (max)
34 2x zones on I/O board (zones 33-34) 4x wired expanders (zones 35-66)
Logs:
750
Total zones
66
Remote arm and soak test
Outputs (max):
38 3x outputs on I/O board 1x output module 4 on each wired expander 1 on each wired keypad
Event signalling to UDL
User/Manager codes:
80 (Max 32 x wireless keyfobs)
Memory type
EEPROM
Duress/Guard codes:
2
EN grade
2
Code combinations:
4294967295 (fully encrypted rolling code)
Environmental class
II
Communications:
Additional to the on-board Wi-Fi module DIGI-GPRS | DIGI-LAN | DIGI-PSTN | DIGI-PSTN/VOICE
