Keep this information on hand
  • Solar Panel - Installation Guide

    • What's in the Box

      Solar Panel Bracket Screwdriver
    • Installation Location

      Try to position the solar panel where it will receive the most amount of sunlight throughout the year.

      Please note: The amount of energy that the solar panel can produce is affected by weather conditions, seasonal changes, geographic locations, etc.

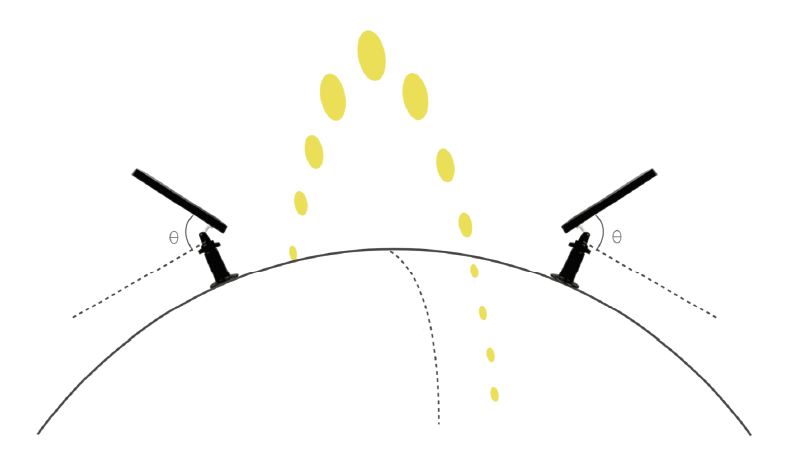

      The Northern Hemisphere The Ideal Angle = The Local Latitude + 5° The Southern Hemisphere
    • Installation

      Step 1

      Mount the bracket with the screws provided in the package.

      Step 2

      Slot the solar panel into the bracket and make sure the nut is tightly secured.

      Step 3

      Loosen the adjusting control on the bracket and position the angle of the solar panel to receive direct sunlight, then re-tighten the adjusting control to secure your setting.

      Rotate the mechanism at A to lock and unlock the position of the solar panel.

    • Power In

      The rear of the BatteryCam has a rubber bung covering the USB power in port. The centre of this bung should be removed and the USB cable fed through in order to remain weather proof.
